// Product Description //

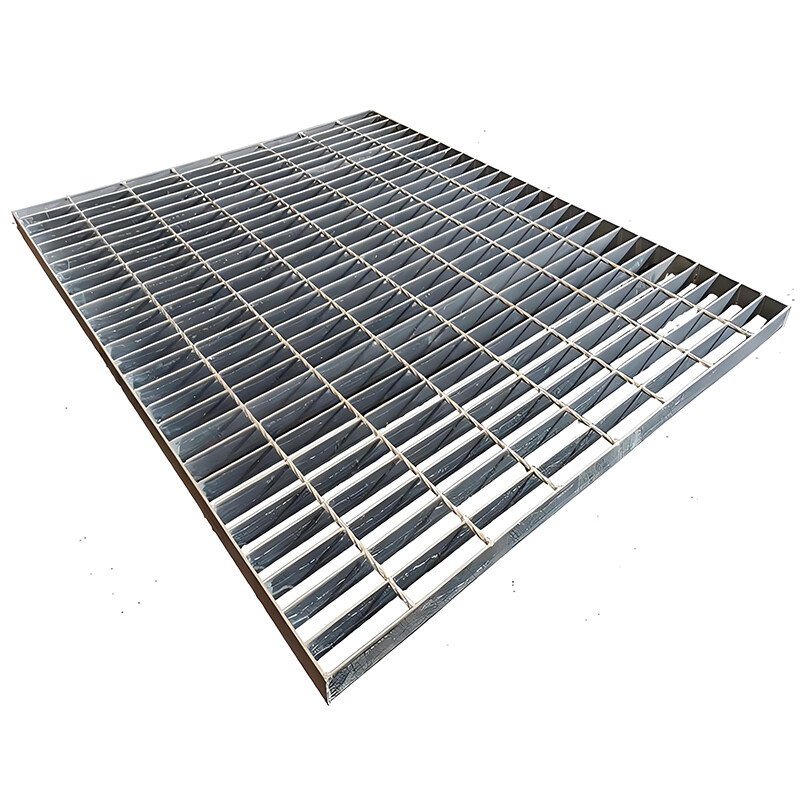

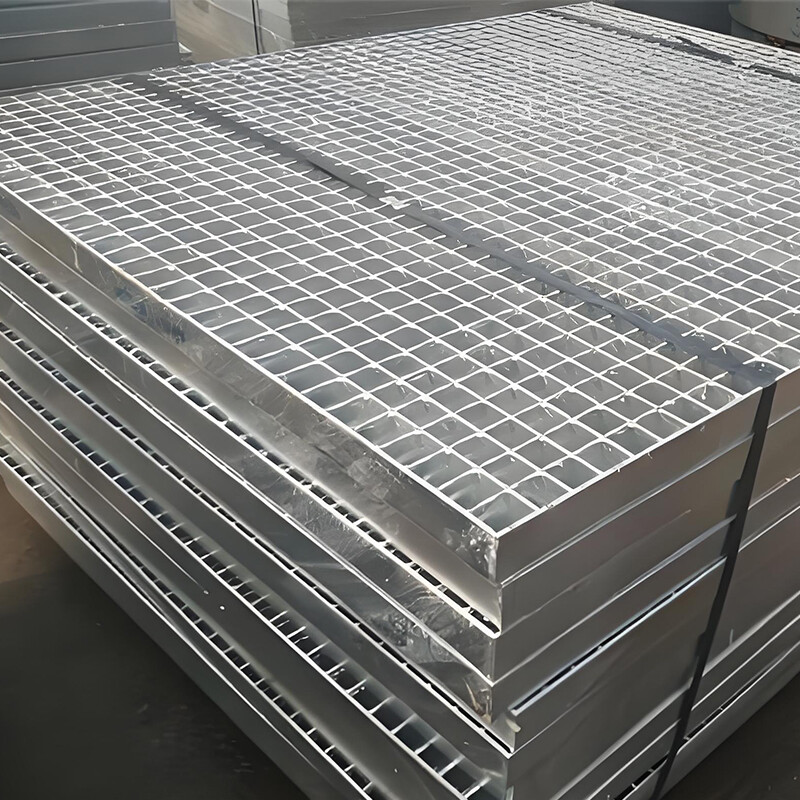

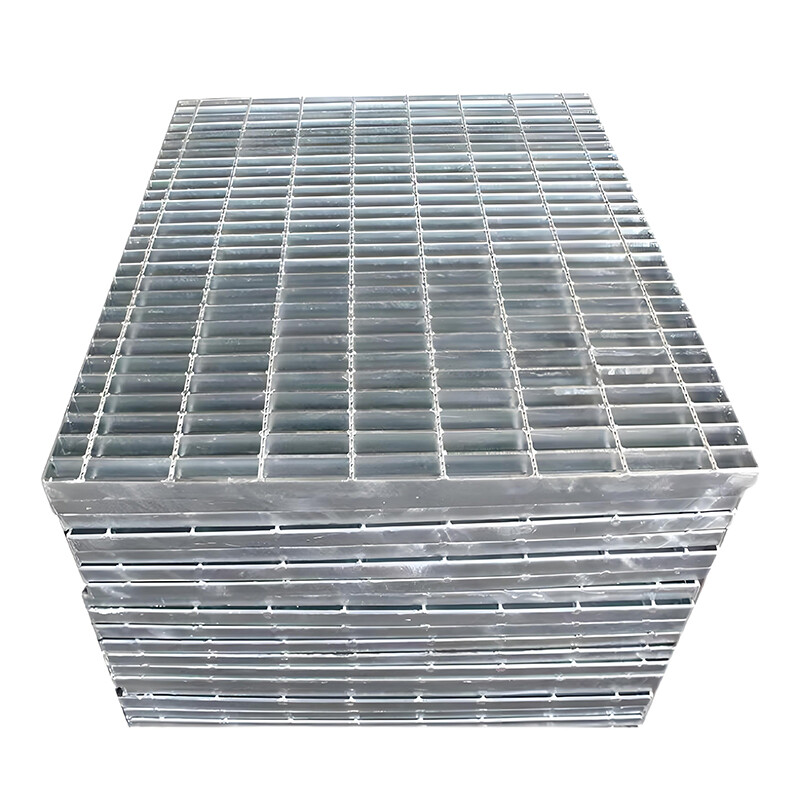

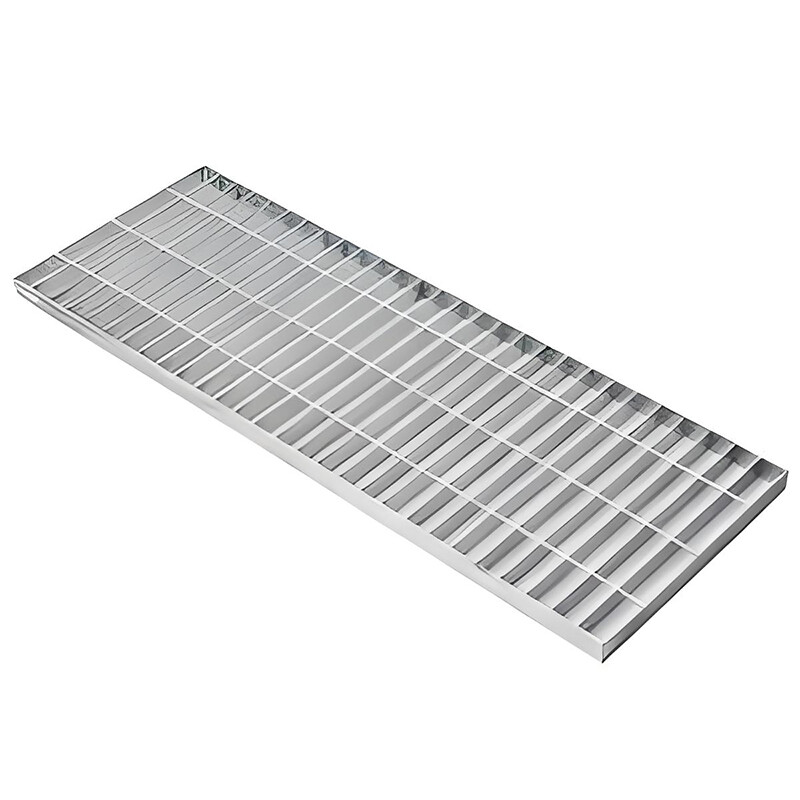

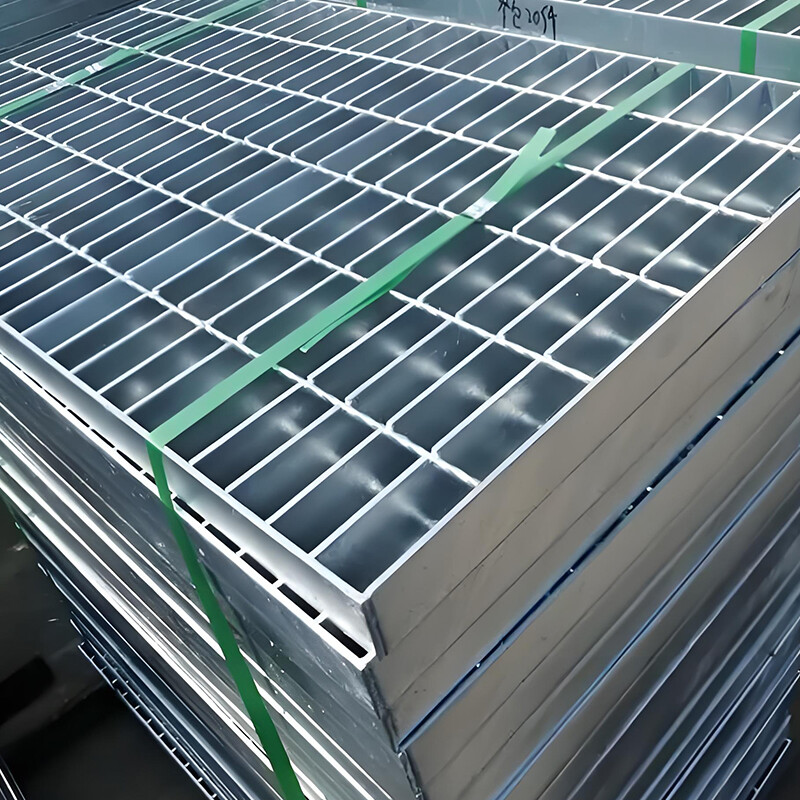

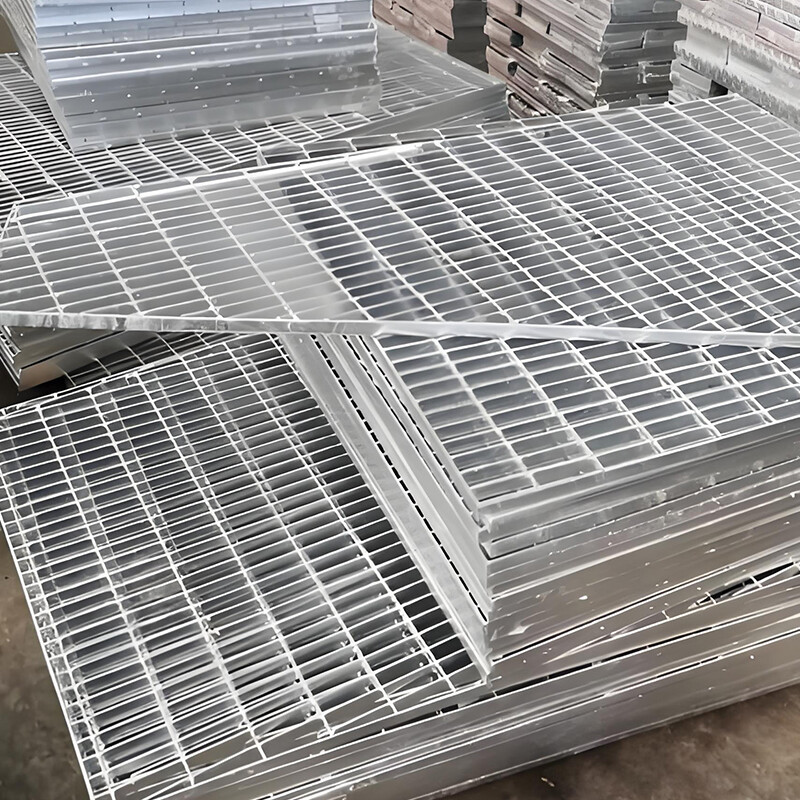

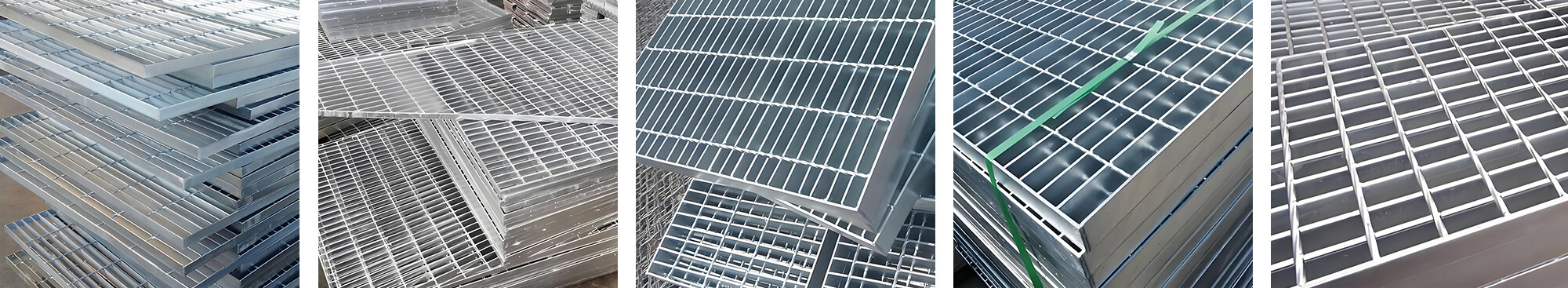

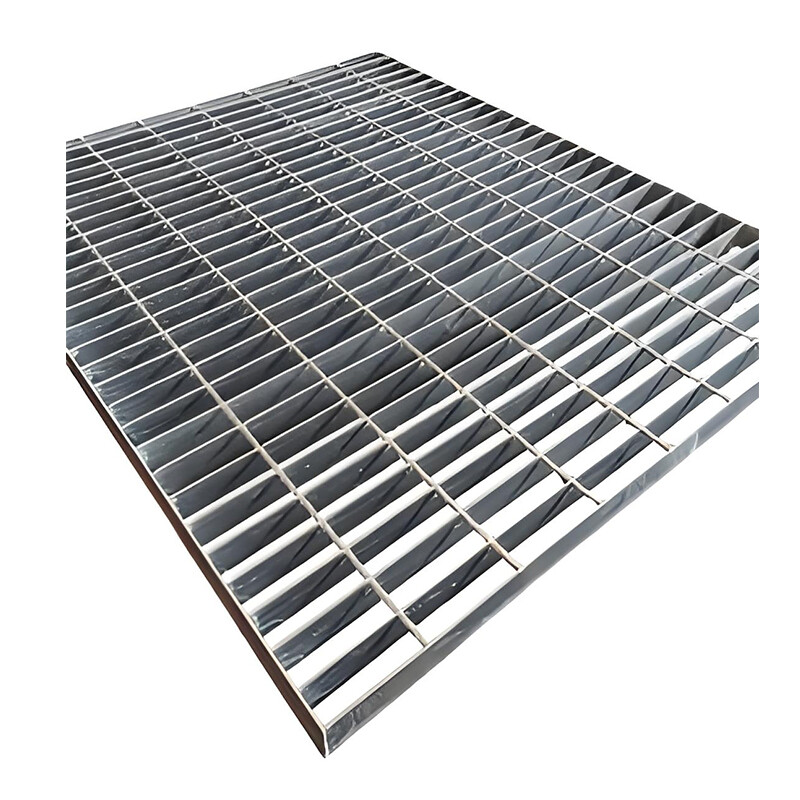

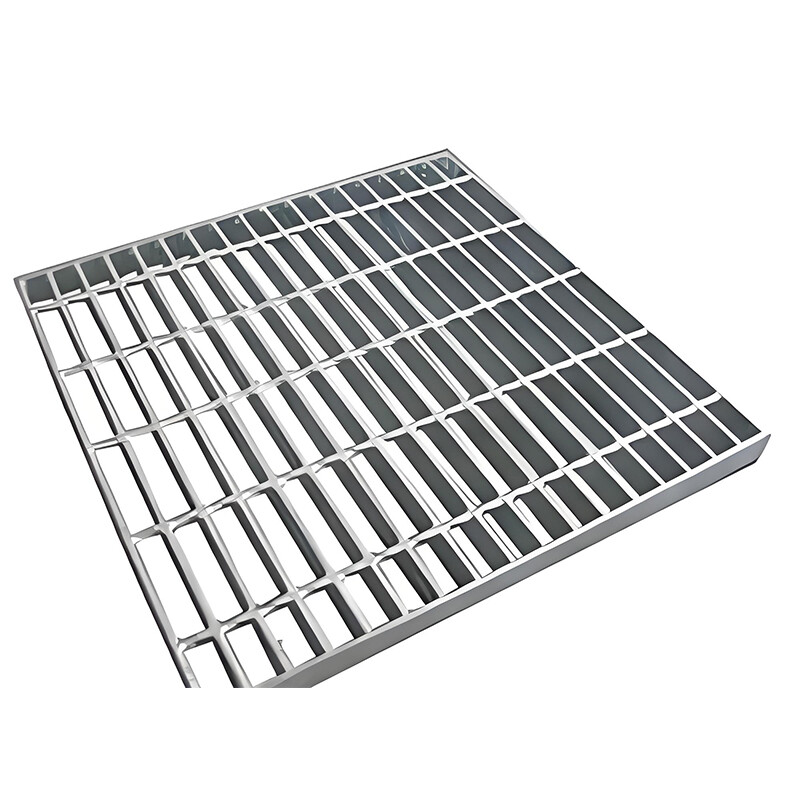

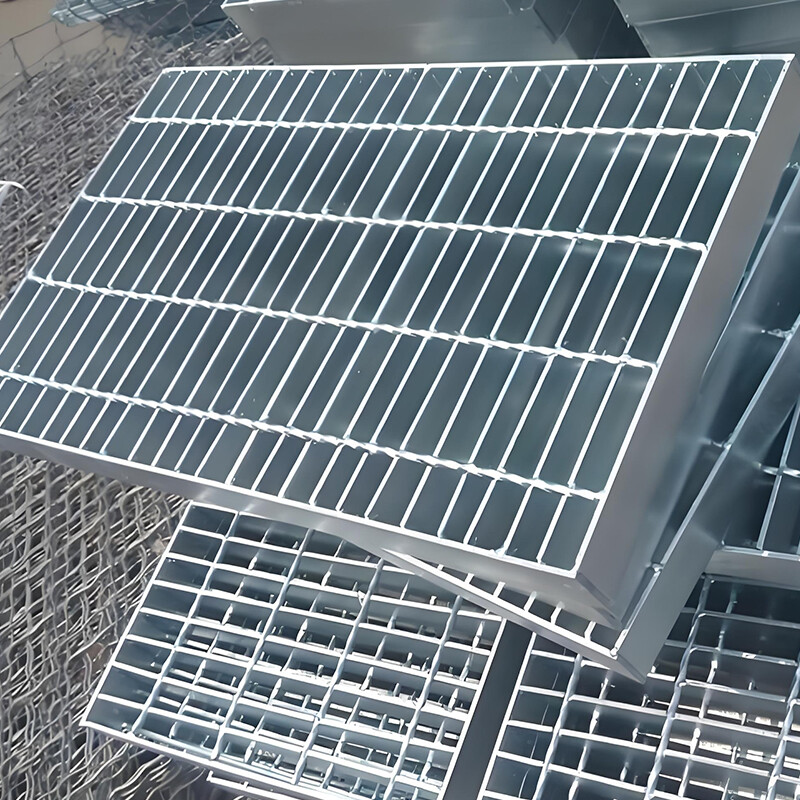

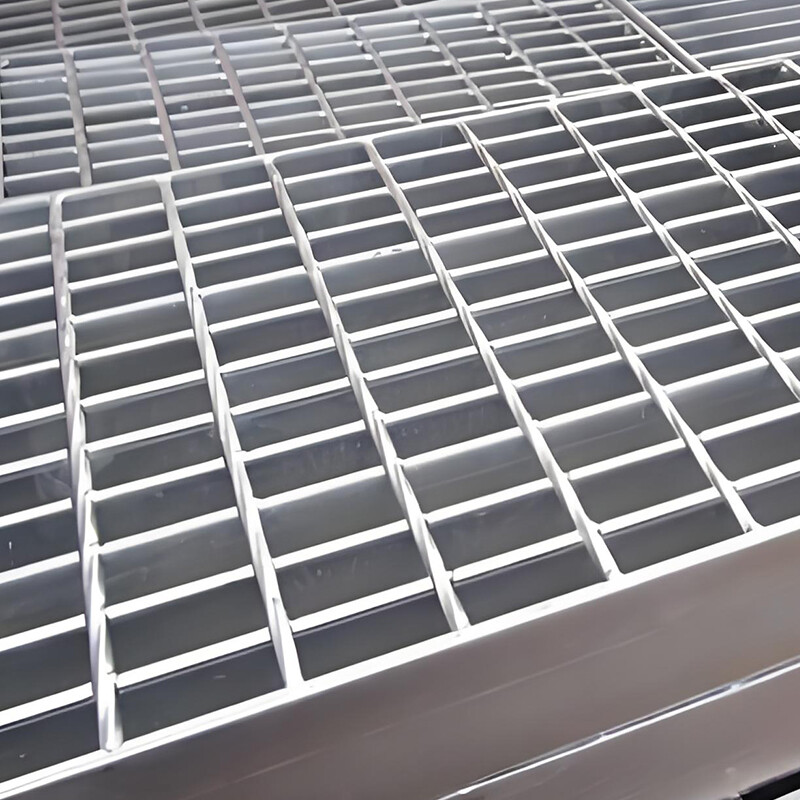

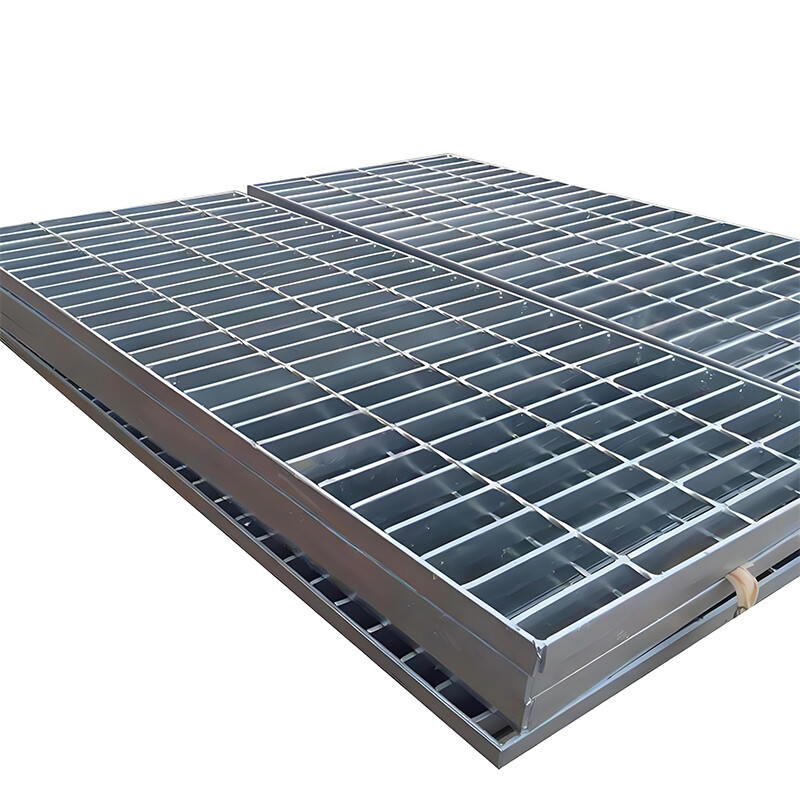

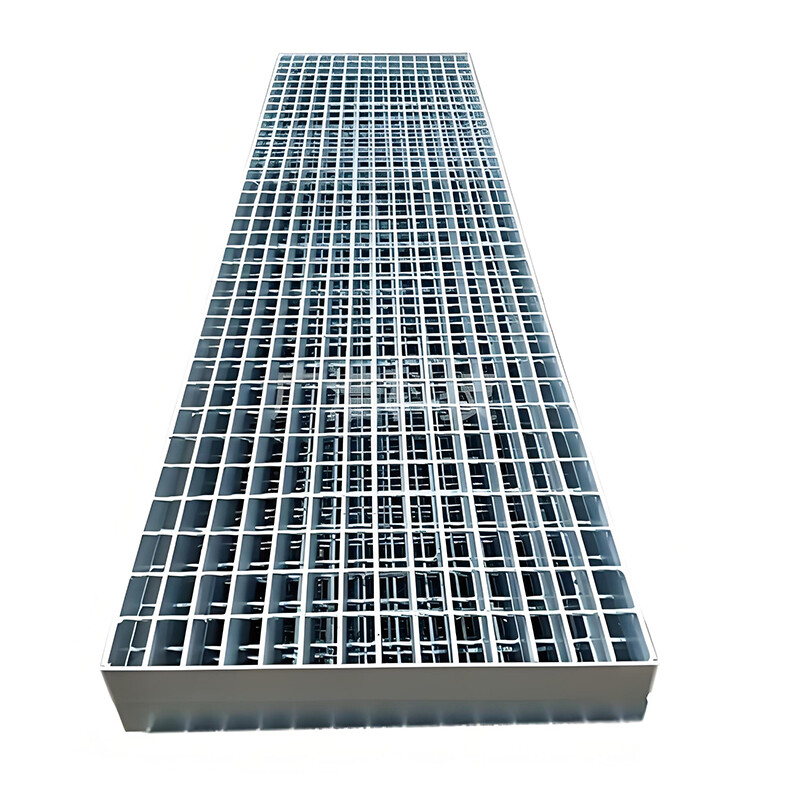

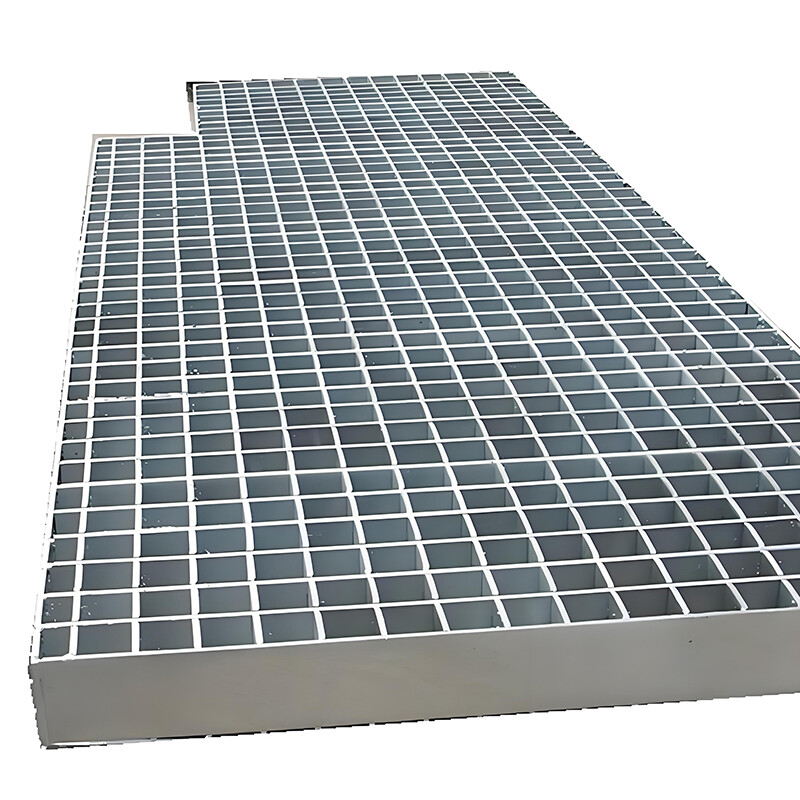

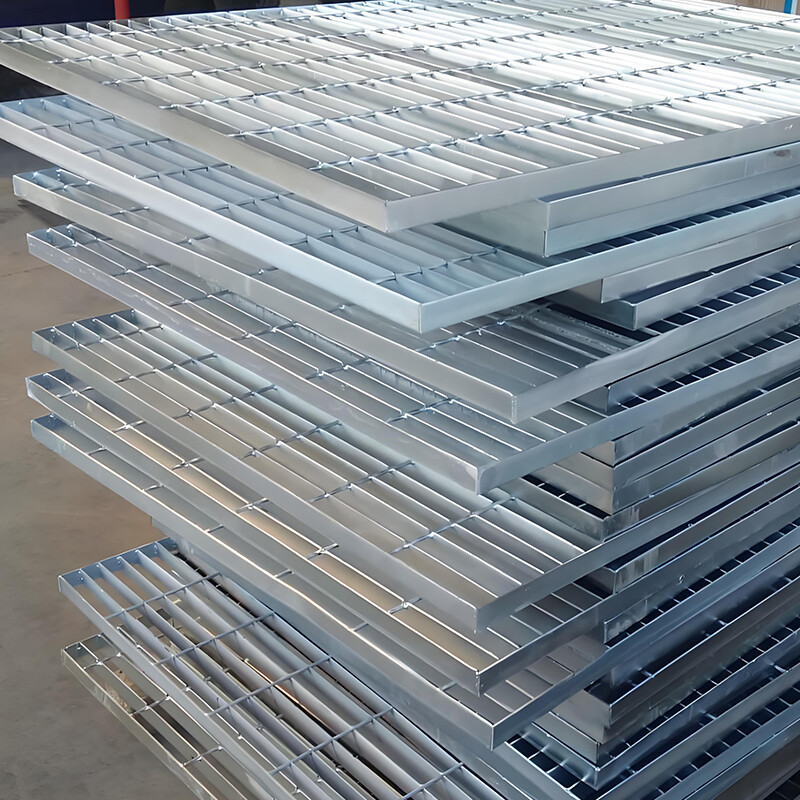

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment.
Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion resistance performance for durability.
Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type with long service life and high load. And it is the most widely used in both industrial, commercial and residential applications.

| Product Line | Bar Grating |
| Construction Type | Standard-Duty Welded |
| Bearing Bar Shape | Rectangular Bar |
| Series Type & Name | GW-150-A (19-W-4) |
| Product Spacing | 19-W-4 |
| Primary Material | Galvanized Steel (GV) |
| Alloy, Grade or Type | Hot Dipped (HD) |
| Material Finish | Mill Finish |
| Bearing Bar Size & Shape | 1-1/2" Height x 1/8" Thick Rectangular Bar |
| Bearing Bar Height | 1-1/2" |
| Bearing Bar Thickness | 1/8" |
| Bearing Bar Spacing | 1-3/16" on Center |
| Clear Space Between Bearing Bars | 1-1/16" |
| Bearing Bars Per Foot of Width | 10.1053 |
| Product Surface | Smooth |
| Bearing Bar Direction (Span) | Parallel to Length of Panel |
| Cross Bar Size & Shape | 1/4" Square Twisted Rod |
| Cross Bar Spacing | 4" on Center |
| Percent Open Area | 83% |
| Weight | 7.40 Lbs./Square Foot |
| Product Form | Panel |
| CAD Drawings | PDF - Download NowDWG - Please Log In |
| Sizes (Width x Length) | 36" x 240"; 36" x 288" (Cut Sizes Available) |
| Load Table | View |
