// Product Description //

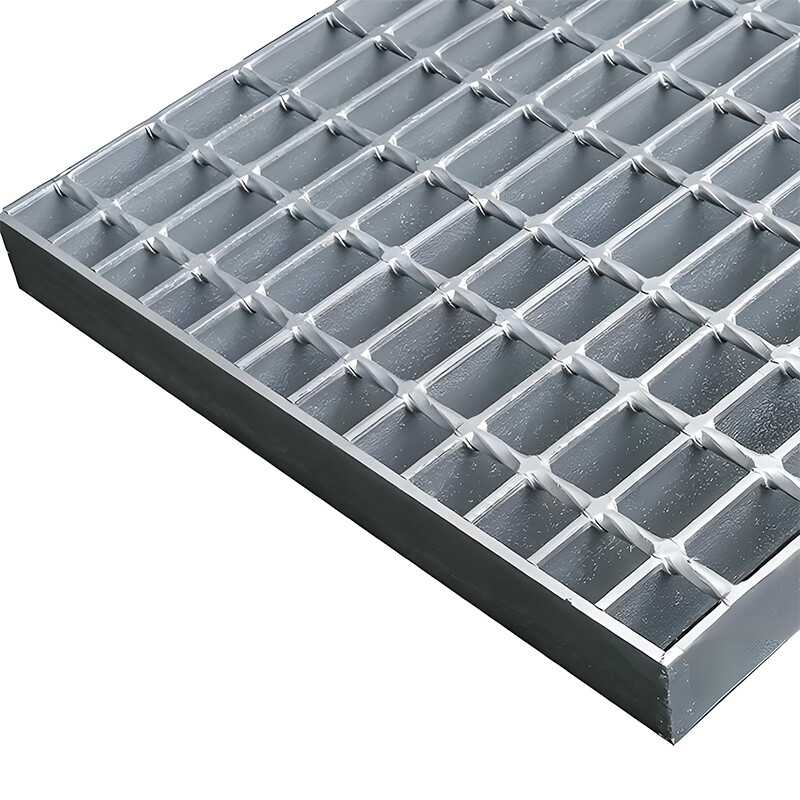

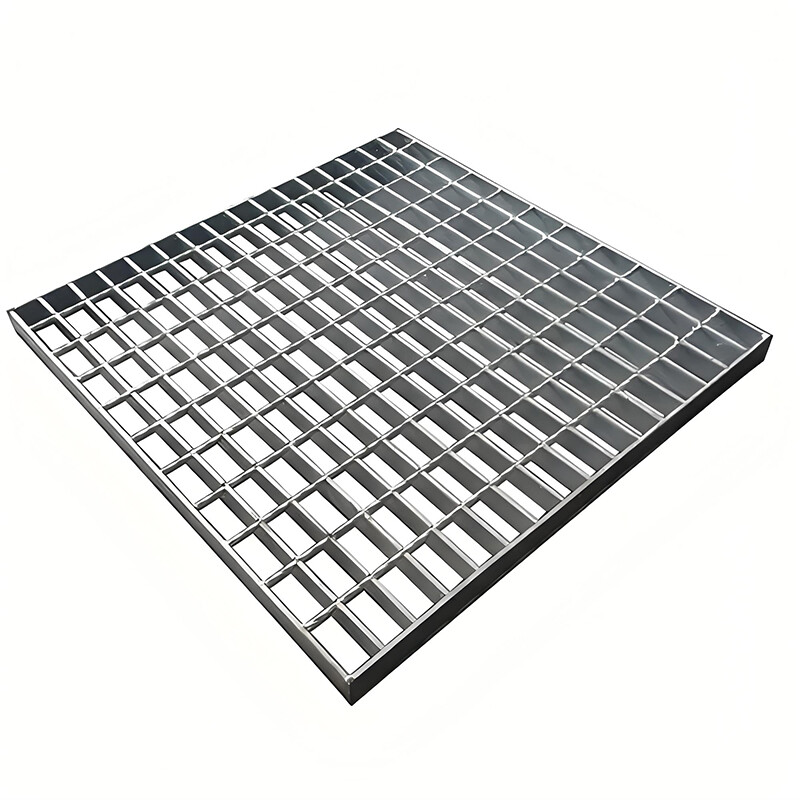

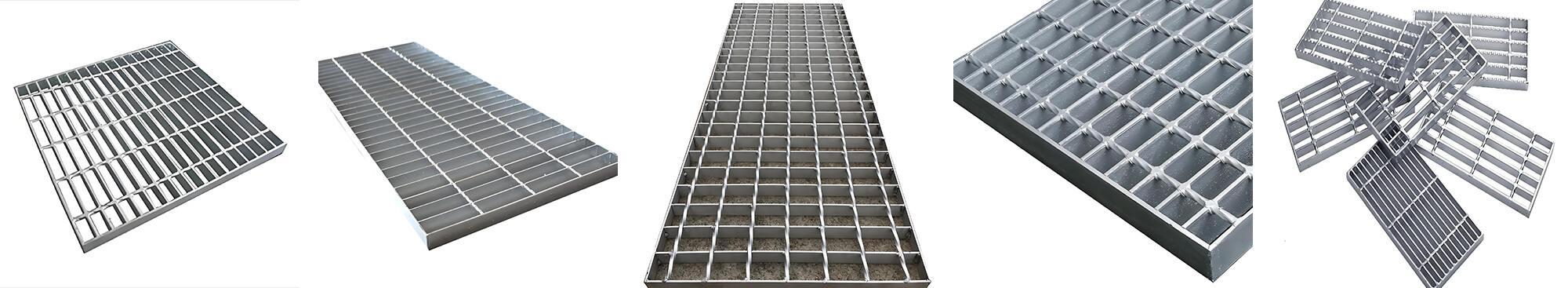

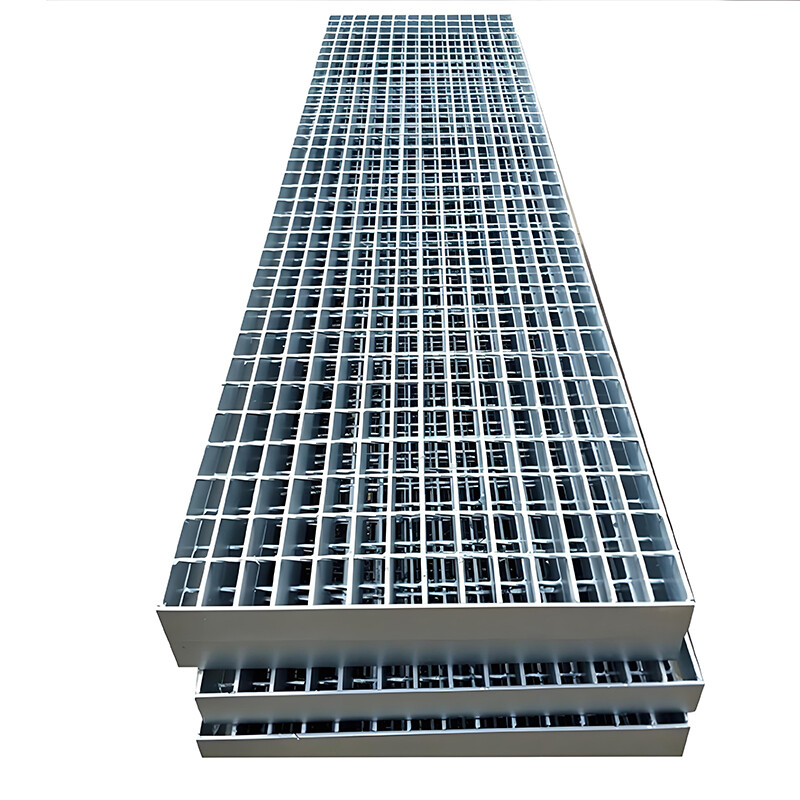

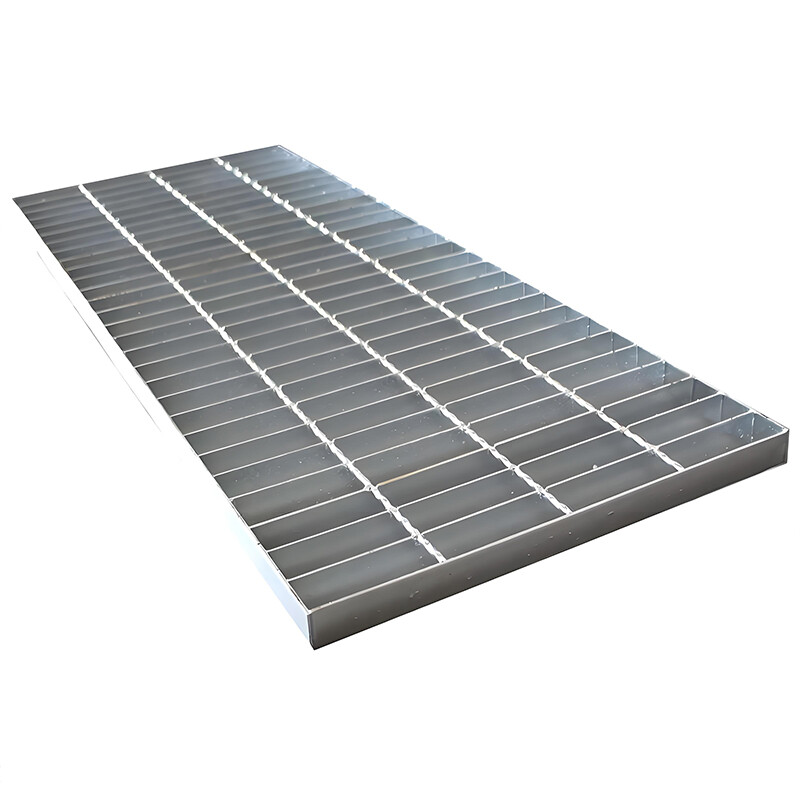

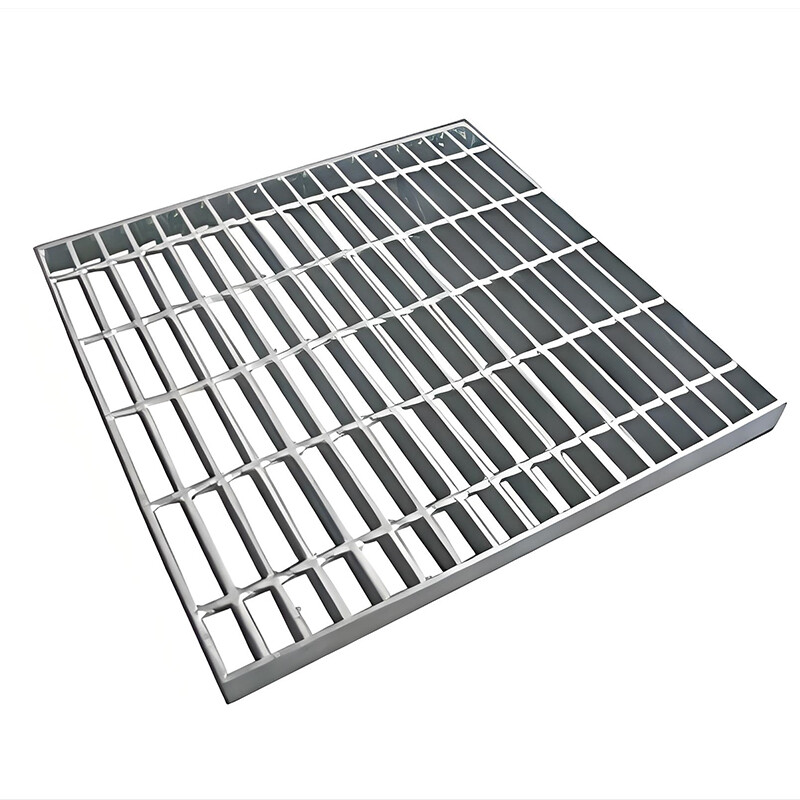

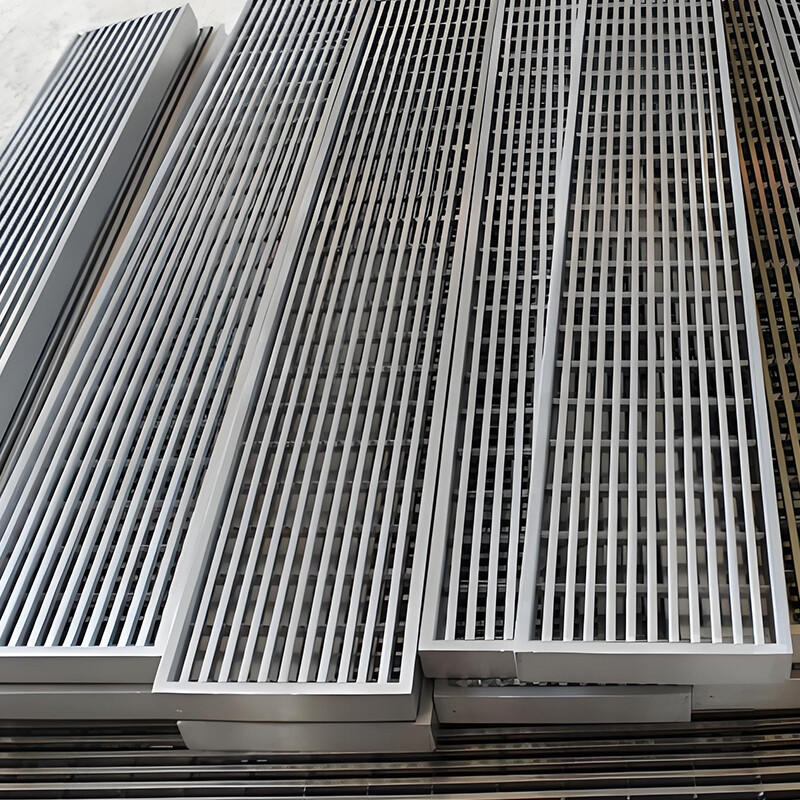

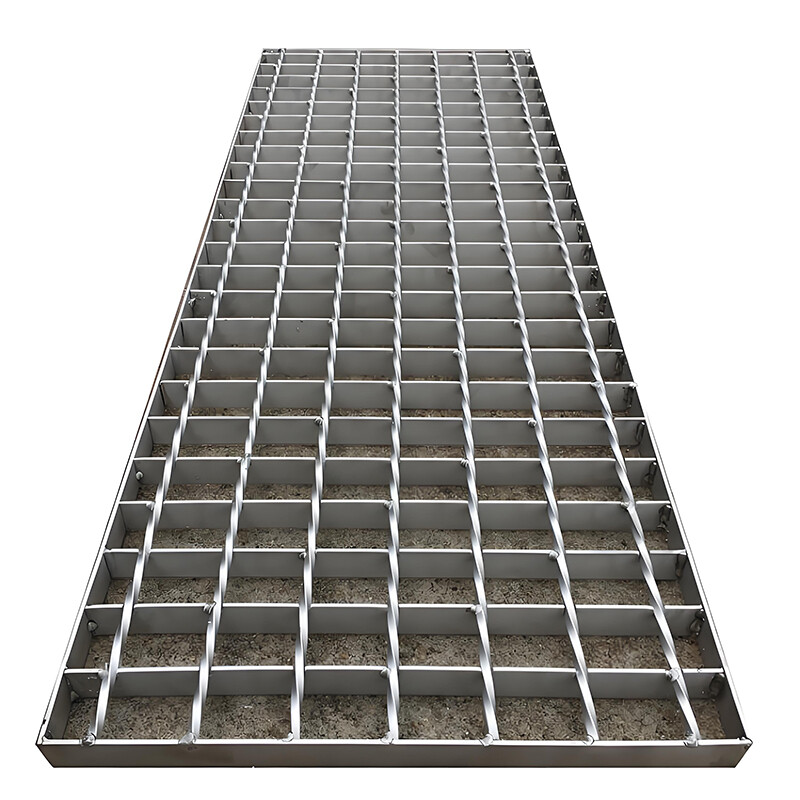

Stainless steel grating is regarded as industrial grade bar grating, which is extremely strong, durable and corrosive resistant for all load bearing applications and is primarily used for pedestrian and light vehicle traffic.

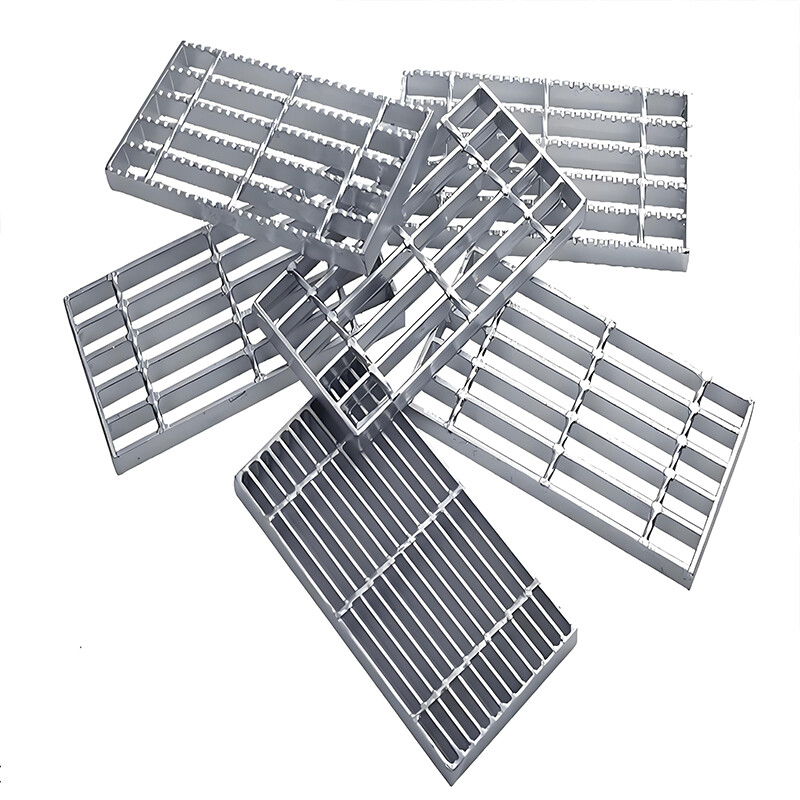

Both in Smooth or serrated surface.
304 or 316 grade for choice.
Wide range of bearing bar sizes and pitches.
Special discount for large orders.
Project reference can be supplied for your bid.
ISO Certificated factory.
CAD or 3D drawing can be supplied for your design and construction.

Material: stainless steel 304, 304L, 316, 316L.
Finish: mill finish, commercial clean and electro polished.
Bearing bar spacing: ranging from 1-3/16" to 11/16".
Cross bar spacing: 2" or 4" on center.
Type | Description | Tensile Strength | Yield |
304 | Good corrosion resistance, high tensile strength, excellent for chemical processing, food industries, power plants and waste water treatment. Used in high temperature applications | 75,000 psi (min.) | 30,000 psi (min.) |
316 | Better corrosion and pitting resistance than type 304, good heat resistance, used in chemical, pulp and paper processing, marine environments, textile equipment, petroleum refining. | 75,000 psi (min.) | 30,000 psi (min.) |
Metric Legend | Imperial Legend |
U = Safe Uniform Load (kPa) | U = Safe Uniform Load (lbs./ft2) |
Stainless Steel Grade | Load/Deflection | Multiply Carbon Steel Load Tables By: | Based on Maximum Allowable Fiber Stress |
304Stainless Steel | U | 1.111 | 20,000 P.S.I. (137.9 MPa) |
C | 1.111 | ||
D | 1.151 | ||
304LStainless Steel | U | 0.917 | 16,500 P.S.I. (113.8 MPa) |
C | 0.917 | ||
D | 0.949 | ||
316Stainless Steel | U | 1.111 | 20,000 P.S.I. (137.9 MPa) |
C | 1.111 | ||
D | 1.151 | ||
316LStainless Steel | U | 0.917 | 16,500 P.S.I. (113.8 MPa) |
